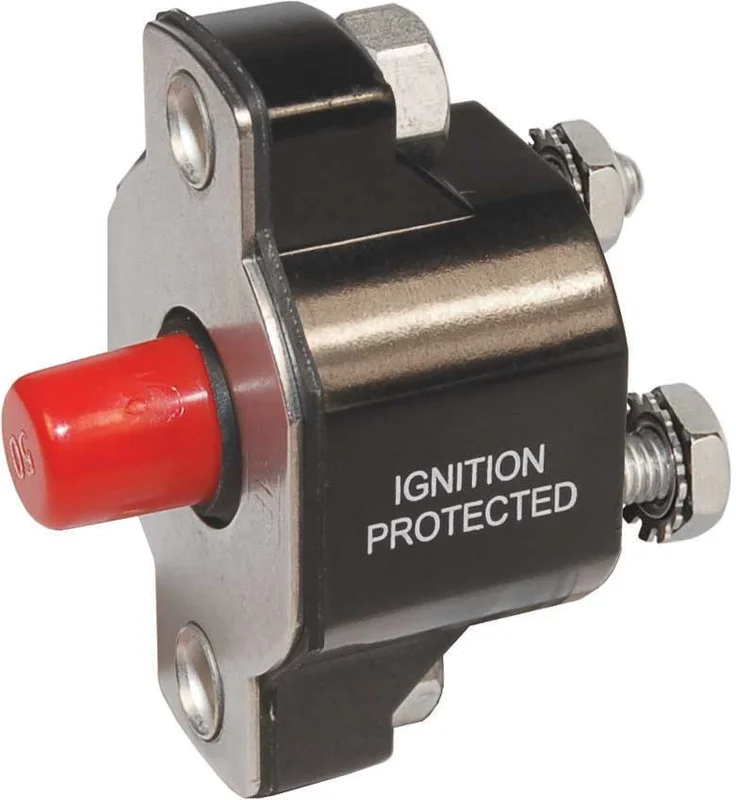

Blue Sea Medium Duty Push Button Reset Only

• Weatherproof
• Can be used as Main, Branch, or 24 hour circuit protection
• Compact design enables high density circuit protection configurations
• Push-to-reset operation
• “Trip Free” design cannot be held “ON” during fault current condition
• Ignition protected – Safe for installation aboard gasoline powered boats
• Captive star lock washers meet requirements for anti-rotation and eliminate handling of small, easily dropped parts

Interrupt Rating: 5,000 Amps@32 Volts DC/3,000 Amps@120 Volts AC

Terminal Stud Torque: 30 in-lb max.

Maximum Voltage Rating: 32 Volts DC/120 Volts AC

Mounting: Accepts #10 Screws

Operating Temperature Range: -54°C to +74°C

Weight Lb (Kg): 0.15 (0.68)

Circuit Breaker Type: Thermal trip, manual push-button reset only

Terminal Stud: #10-32 Stainless Steel
