Blue Sea ML-ACR Automatic Charging Relay with Manual Control 24VDC 500A

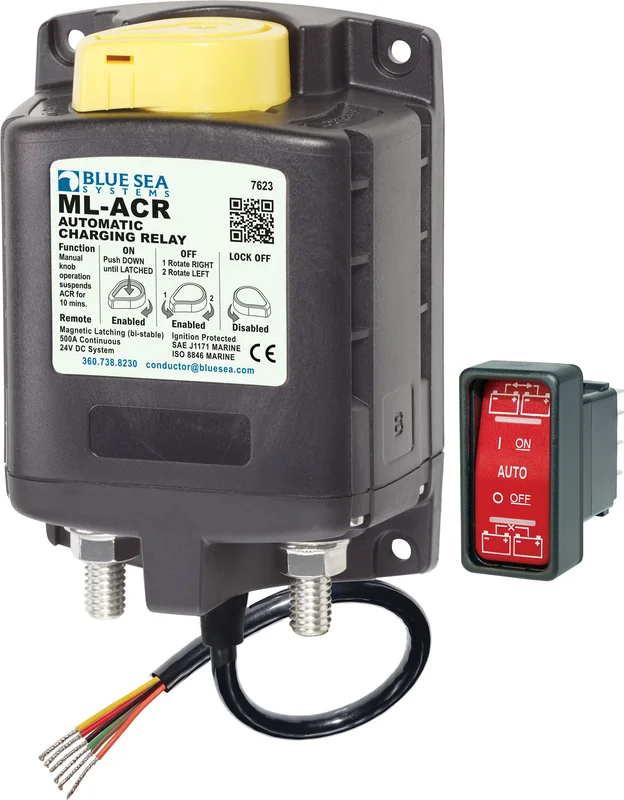

Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control – 24V DC 500A

Model: 7623-BSS

• Automatically manages the charging of two large battery banks
• Allows paralleling of battery banks for emergency starting
• 500 Ampere continuous rating to support high-output alternators
• Magnetic Latch (ML)—ACR draws very low current (<40mA>
• Dual sensing—senses charge on both battery banks
• Start Isolation (SI)—can be configured for temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics
• Engine Isolation (EI)—can be configured for isolation of two engines while both are running to protect engine electronics and maximize alternator output
• Senses charging on two battery banks
• Manual control switch provides an added level of safety allowing control with or without power, and offering LOCK OFF capability for servicing

500 Amp magnetic latching (bi-stable) relay automatically combines batteries during charging and isolates batteries when discharging and when starting engine

Specifications
