Faria Kronos Gauge INBOARD BOXED SET – KTF024

Description

UNIT OF MEASURE: 1 | EA

DMI# 351014

MFG# KTF024

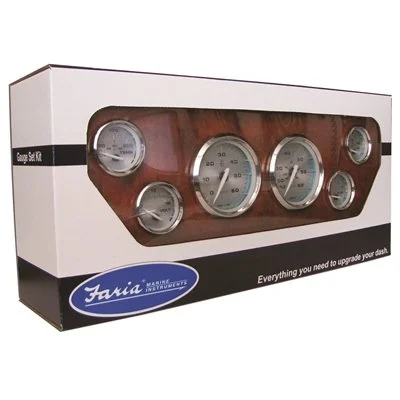

Faria Kronos 6-Gauge Inboard Boxed Set

FEATURES

• Inboard set includes the following (6) gauges:
  • 4″ Speedometer (60 MPH) (Mechanical)
  • 4″ Tachometer (6000 RPM)
  • 2″ Fuel Level
  • 2″ Voltmeter (10 – 16V DC)
  • 2″ Water Temperature (100 – 250° F)
  • 2″ Oil Pressure (80 PSI)
• Gauges fit standard 2″ and 4″ instrument dash mounting holes
• Perimeter-lighted dials are easy to read in poor light conditions and foul weather
• Made in U.S.A

SPECS

• Faria Model No. KTF024
• Style: Kronos
• Bezel Size: 2 1/4″ and 4 1/4″
• Dial: Edge-lit spun aluminum dial with gold and black graphics, polished stainless steel bezel, 2-piece Newport analog pointer with black hub, and flat scratch-resistant glass lens
• Operating Voltage: 11.5 – 16V DC
• Current Draw: < 100 mA (without illumination)
• Operating Temperature: -4 F° to +158° F
• Ingress Protection (gauge front): IP65 (Dustproof / protected against jets of water from all directions)
• Cut-Out: 2-1/16″ Dia. (53 mm) and 3-3/8″ Dia. (85 mm)
