International Dock Products SPC-36-3A-305 Shore Power Pedestall

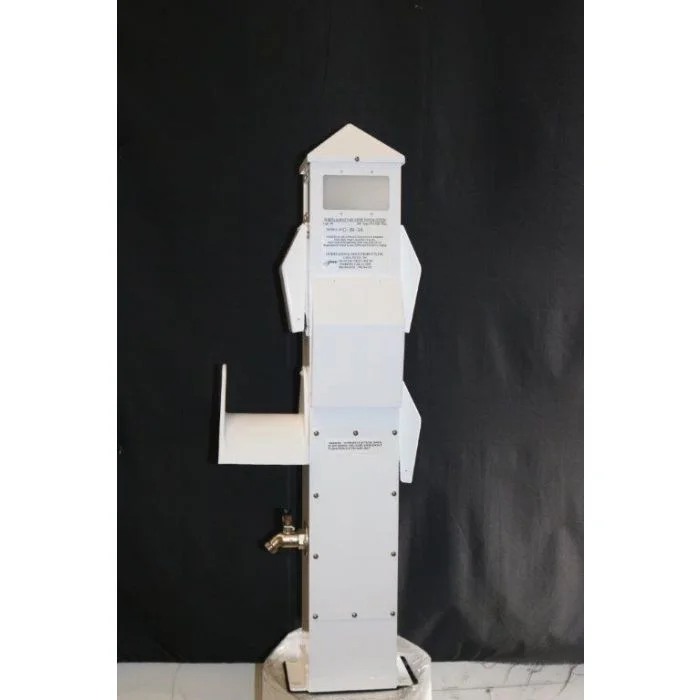

SPC-36 Slimline Dockside Shorepower Center

The SPC-36 unit is 36 inches high and is designed to mounted directly into the dock. It accepts
50 amp, 30 amp and GFI 20 amp receptacles, as welll as TV (Cable) and Phone outlets. It can be
fitted for multiple water faucets and hose holders. Top light has a photo cell to automatically turn
on and off the light. Receptacles are protected by aluminum covers mounted on a 45° down angle
and back-lighted.

Key Product Features:

• 6″ X 6″ X 36″; Free Standing Dock Pedestal
• Powder Coated Aluminum, Includes Dock Lights
• Extruded aluminum 6063 with 1/8″ wall thickness
• Welded base for extra strength
• All stainless steel fasteners with nylon washers
• Isolation plate to separate water, telephone and TV from “electrical” (completely waterproof)
• Each receptacle protected by a thermal magnetic circuit breaker
• Electrical distribution block – direct feed
• All receptacles are covered for protection when not in use
• Receptacles are designed to be water-tight when in use
• Plastic three sided lenses
• Cone top
• Powder coated white
• 15 year unconditional warranty on structural integrity of casing
• Fully Listed – meets or exceeds all requirements for UL 555 and NFPA 303
