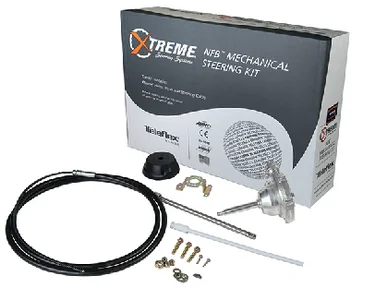

Teleflex SSX17620 Xtreme NFB Steering Kit 20‘

Teleflex XTREME Mechanical Steering System

Teleflex has always been the premier name for marine steering systems, but now they are really changing the game with their Xtreme steering systems. Featuring a newly designed helm, bezel and cable. The Xtreme systems feature the smoothest and lowest effort steering experience in the marketplace. Quick connect features and small footprints make installation easy, and these kits are made, designed and assembled in the USA.

FEATURES
• Smoothest and lowest steering effort mechanical helm offered in the market place yet still offers easy installation.
• Complete steering system including new helm, high efficiency XTREME steering cable design and new style bezel.
• Quick connect feature on both steering cable and spent travel tube for easy quick installation.
• Installs in same mounting pattern and bracket location as current Teleflex Marine steering systems.
• Smallest footprint possible to accommodate small/tight dash helm stations.
• Made, designed and assembled in the USA.

Helm – The patent pending helm has a complete new gear train designed to provide smooth feel, minimal backlash and low effort at the wheel. It also offers the smoothest NFB clutch release and has a smaller footprint than the current 4.2 helm. All castings are designed to reduce weight while offering superior strength.

Bezel – Patent pending, bezel keeping with the design of the SH91900 tilt and hydraulic helm pump designs.

SSCX Xtreme Cable

Features
• Based on the current industry leading XTREME technology
• Splined ridges on the inner liner allow close contact with core
• With minimum contact the core glides freely
• Tight fit for minimal lost motion
• Reduced friction for extended cycle life
• Robust construction support highest steering loads in the mechanical range

A brand new XTREME steering cable was designed specifically for this system. This cable offers lower backlash and is more efficient than a standard steering cable. It provides the lowest ease of effort, a close “fit” of the core to liner for lowest lost motion. The concept provides the “tight” fit of core to liner yet allows area for lubrication. The design of the helm allows higher loads to be placed into the cable requiring this new design cable. There is a quick connect feature on both the steering cable and spent travel tube for easy, quick installation.
