Description

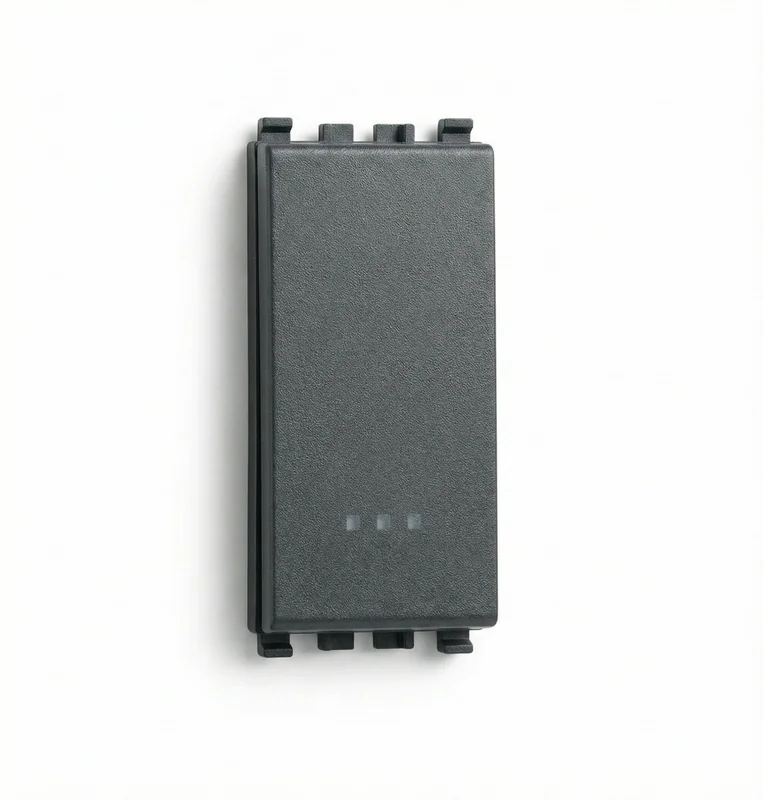

Vimar Eikon 20001 1-Way Rocker Switch (16A, 250V)
The Vimar Eikon 20001 1-Way Rocker Switch is a flush-mounted electrical switch designed for reliable on-off control in marine and onboard electrical systems. Built with a modular Eikon design, it supports clean installations where durability, consistency, and long-term serviceability matter.
This switch is commonly used on boats, yachts, and marine interiors where dependable switching is required for lighting and auxiliary circuits.
What This Switch Is Used For
This 1-way rocker switch is designed for simple, reliable circuit control in marine and onboard environments, including:
- Cabin and interior lighting circuits
- Utility and accessory switching
- Control points for low-power electrical loads
- Retrofit or replacement in Eikon modular switch systems
Its rocker-style operation provides clear tactile feedback, making it easy to use in both stationary and underway conditions.
Where This Switch Works Best
The Vimar Eikon 20001 is best suited for interior and protected electrical locations, including:
- Cabins and salons
- Control panels
- Helm consoles
- Electrical distribution areas
With an IP40 rating, it is designed for dry, enclosed spaces rather than exposed or washdown areas.
Key Features That Matter
- 16A, 250V rating
Handles standard marine and onboard electrical loads with consistent performance. - Modular Eikon design
Available in 1-module and 2-module configurations to match different panel layouts. - Replaceable rocker button
Allows easy servicing or cosmetic replacement without changing the entire switch. - Optional illumination support
Can be fitted with an exchangeable LED indicator for orientation or control visibility. - Flush-mounted installation
Snaps cleanly into place for a secure, finished appearance. - Halogen-free thermoplastic construction
Durable, lightweight, and suitable for marine interiors.
Installation and Compatibility
This switch is designed for straightforward installation in compatible Eikon mounting frames.
Installation notes:
- Flush-mounted design
- Screwed terminal connection
- Built-in depth: 25.00 mm
- Rocker/button method of operation
- Not intended for washing machine or high-vibration appliance control
It integrates seamlessly with other Vimar Eikon series components, making it ideal for new builds or retrofits.
For related electrical accessories and system components, see
👉 Marine lighting and electrical accessories
https:///collections/marine-lightning-accessories
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | 1-Way Rocker Switch |
| Series | Vimar Eikon |
| Rated Voltage | 250V |
| Rated Current | 16A |
| Degree of Protection | IP40 |
| Operation | Rocker / Push Button |
| Illumination | Optional LED (exchangeable) |
| Connection Type | Screwed terminal |
| Material | Halogen-free thermoplastic |
| Mounting | Flush mounted |
| Width | 22.30 mm |
| Height | 49.00 mm |
| Depth | 36.10 mm |
| Built-In Depth | 25.00 mm |
| Condition | New |
FAQs
Is this switch suitable for marine use?
Yes. It is designed for interior marine and onboard electrical systems where protection from direct water exposure is provided.
Can the rocker button be replaced?
Yes. The rocker button is replaceable, enabling easy servicing or finish changes.
Does this switch include an LED indicator?
The switch supports optional LED illumination, which can be added and replaced if needed.
Can this be used with LED lighting circuits?
Yes. It is commonly used to control marine LED lighting and low-power electrical loads.
Summary
The Vimar Eikon 20001 1-Way Rocker Switch provides clean, reliable switching for marine interiors and onboard electrical systems. Its modular design, replaceable components, and optional illumination make it a practical choice for boats and yachts that value serviceability and long-term reliability.
