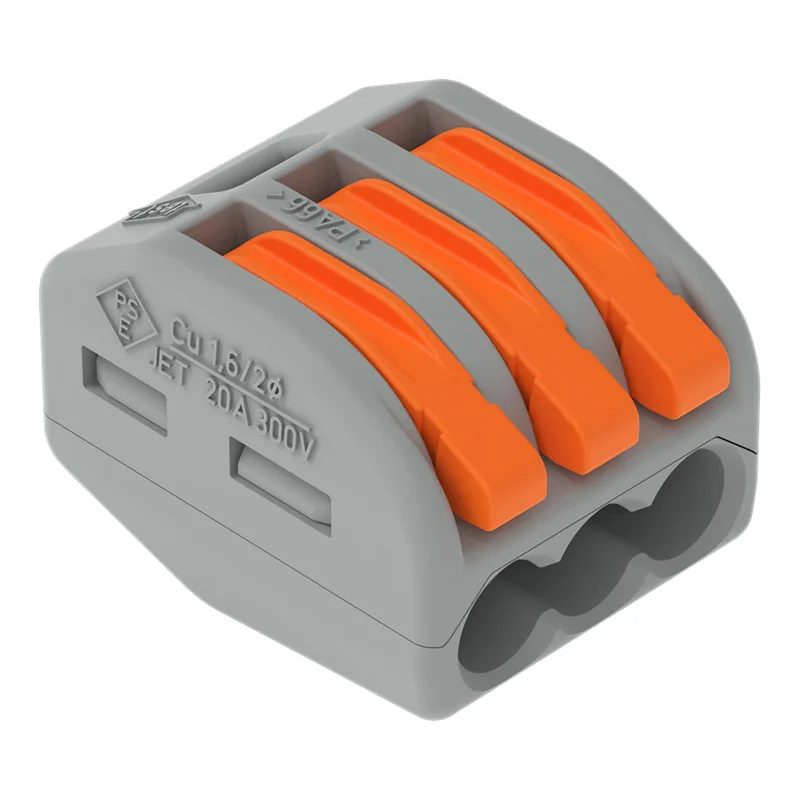

WAGO 222-413 Splicing Connector – 3-Conductor, Lever Type, CAGE CLAMP® – 32A, 400V
Reliable, Tool-Free Wiring for High-Load Applications
The WAGO 222-413 is a compact 3-conductor splicing connector designed to simplify and secure electrical installations across residential, commercial, and industrial environments. Engineered with WAGO’s patented CAGE CLAMP® technology and integrated operating levers, this connector provides fast, reliable, and maintenance-free connections for all conductor types: solid, stranded, or fine-stranded.
Whether you’re wiring lighting systems, intercoms, or large appliances like ovens, the WAGO 222-413 delivers unmatched ease and performance.
Why Choose the WAGO 222-413 Splicing Connector?
-
Universal Compatibility: Accepts solid, stranded, and fine-stranded wires ranging from 0.08 mm² to 2.5 mm².
-
Tool-Free Lever Operation: Quick and secure installation no screwdriver or ferrules required.
-
CAGE CLAMP® Technology: Ensures safe, vibration-proof, and maintenance-free connections.
-
High Current & Voltage Ratings: Handles up to 32A and 400V for demanding electrical loads.
-
Compact & Stackable Design: Perfect for tight spaces in junction boxes and panels.
Key Features
Fast, Safe Wiring
-
Easily connects dissimilar conductors
-
Ideal for renovations, retrofits, or new builds
Integrated Levers
-
Open and close by hand
-
Simple conductor insertion with visual confirmation
Versatile Applications
-
Used in lighting circuits, ovens, motors, and more
Compact Dimensions
-
Width: 17 mm
-
Height: 14.5 mm
-
Depth: 20.5 mm
Wire Strip Length
-
Required: 9–10 mm
Perfect For
-
Electricians and DIY installers
-
Junction box wiring
-
Control cabinets and panels
-
HVAC, lighting, and industrial applications
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Splicing Connector |
| Connector Series | WAGO 222 |
| Item Number | 222-413 |
| Number of Conductors | 3 |
| Connection Type | Lever / CAGE CLAMP® |
| Voltage Rating | 400V |
| Current Rating | 32A |
| Wire Size | 0.08–2.5 mm² |
| Strip Length | 9–10 mm |
| Housing Color | Gray |
| Material | Polycarbonate |
| Dimensions | 17 x 14.5 x 20.5 mm |
| Certifications | CE, RoHS |
